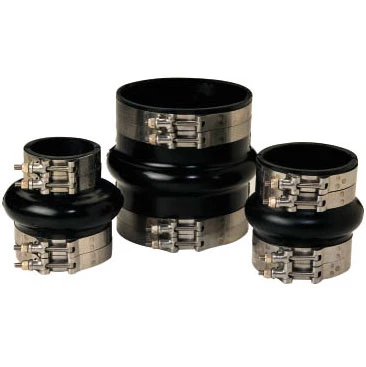

When plumbing your exhaust system, hump hose helps to compensate for off-center alignment.

These rubber hump hoses absorb more engine movement, vibration and misalignment than standard exhaust hose. Install over rigid tubing or pipe using the four included stainless T-bolt clamps (two at each end), downstream from cooling water injection.

Key Features

Absorbs engine vibration better than standard exhaust hose
100% high-temperature EPDM marine rubber
T-bolt clamps (4), two at each end included

Specifications

Application: Wet exhaust systems only
Temperature Range: -40°F to 250°F max. continuous
Construction: Molded EPDM rubber
Wall Thickness: 1/4″
Installation: Use at least two clamps, 1/2″W minimum, at each end
Included Equipment: 316 stainless steel T-bolt clamps, 3/4″W, 18-8 stainless steel lock nut
Warranty: Five years

Dimensions

Manuf. Part Number	Inside Diameter	Outside Diameter (Hump)	Wall Thickness	Length	Model
116-220-3000KIT	3″	4 1/2″	1/4″	5 1/4″	7063555
116-220-4000KIT	4″	5 1/2″	1/4″	5 1/4″	7063563
116-220-5000KIT	5″	6 1/2″	1/4″	6″	7063571
116-220-6000KIT	6″	7 1/2″	1/4″	7″	7063423

Select a Product	Single Hump Hose with Clamps, 6", Single Hump Hose with Clamps, 3", Single Hump Hose with Clamps, 5", Single Hump Hose with Clamps, 4"
