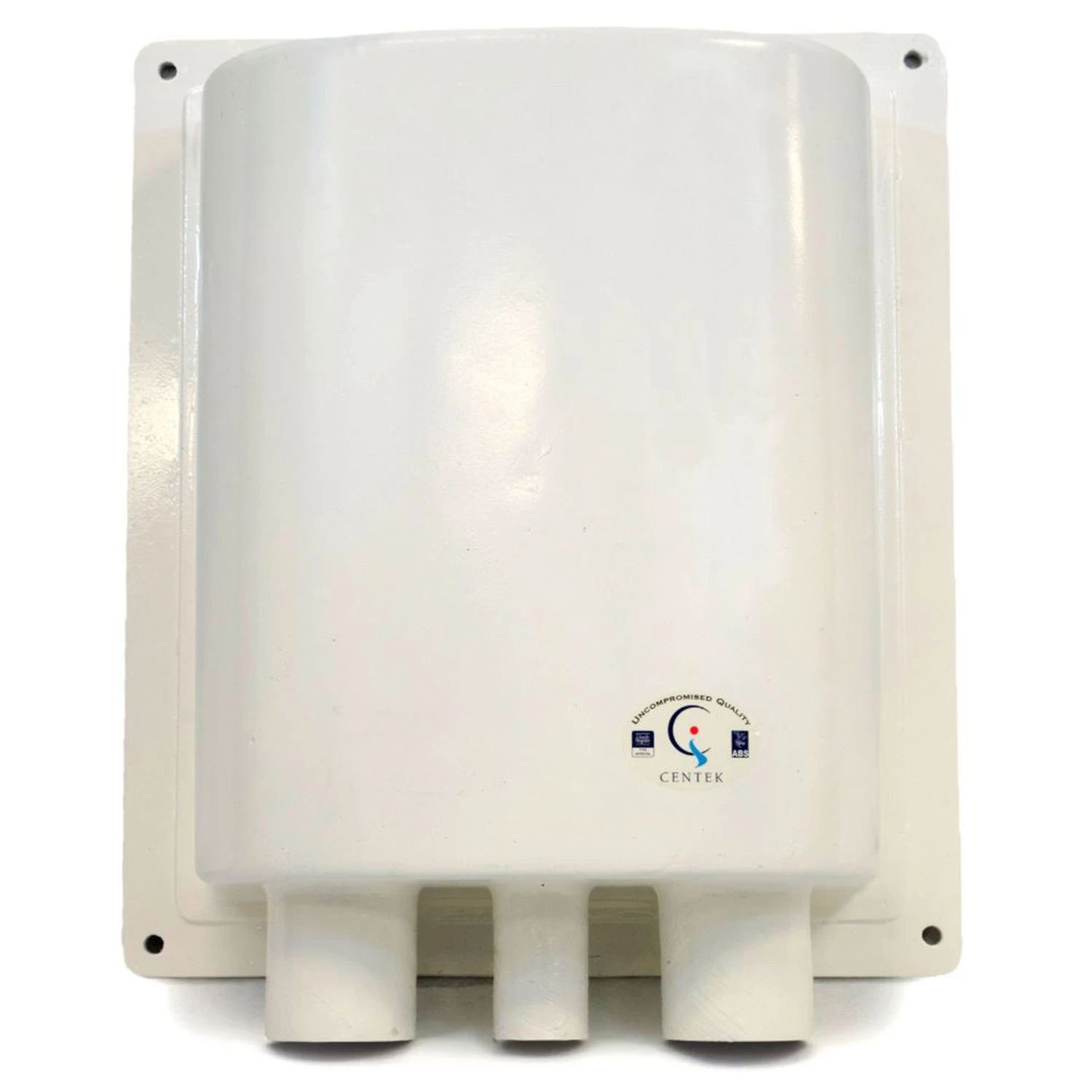

CENTEK Mufflers Gen-Sep Water Separators

Gen-Sep™ Water Separators help quiet exhaust for a more pleasant boating experience.

“Belching” exhaust mixed with cooling water is a characteric of many marine exhaust systems. Gen-Sep Water Separators eliminate this phenomena by removing nearly all the cooling water from the exhaust. Gen-Sep Water Separator installations replace the exhaust hose loop after the muffler at the highest point in the system. Once separated, exhaust cooling water is drained out via a thru-hull fitting below the wateline—thus eliminating excess noise often created by splashing and pulsating water flow at the exhaust outlet. Construction features corrosion-resistant, high-temperature resin and E-Glass.

Key Features

• Heat-resistant materials stand up to hot wet exhaust
• Corrosion-resistant materials ensure long component life
• Fiberglass material not suseptible to galvanic corrosion

Specifications

• Application: Inboard gas or diesel engines or generators
• Construction: Filament Winding CNC, Resin Transfer Molding
• Type of Resin: Class 1, Fire Retardant Epoxy Vinyl Ester Thermoset
• Glass: Corrosion-resistant E-Glass
• Glass/Resin Ratio: 60%
• Color: White
• Approvals: LLoyd’s Register Type Approval
• Flame Retardancy: UL9V-0

Port Sizes

CENTEK #	Exhaust Inlet Port Dia. (OD)	Exhaust Outlet Port Dia. (OD)	Water Drain Port Dia. (OD)	Model
1020150	1 1/2″	1 1/2″	1 1/4″	2639532
1020200	2″	2″	1 1/2″	2639607

Installation

For installation, see the Gen-Sep Product Installation Guidelines.

More Information

For dimensions and other information, see the Gen-Sep 1020150 and/or the Gen-Sep 1020200 data sheet.
