BALMAR High Output Alternators XT-Series 250 Amp/12 Volt DF4,K6 Alternator Kit With Max Charge Regulator

BALMAR XT-Series Alternator

XT-Series Alternators from Balmar bring together the latest innovations in alternator design to deliver incredible charging power in a compact, Marine & RV-friendly package. The New XT-Series Alternator family features a state-of-the-art, braided wire stator design to generate exceptional output in the smallest possible area.

The XT-Series produces more power than previous AT-Series designs and operates 5o -10o C cooler. In addition, Balmar also added Smart Ready® internal regulator technology to provide an additional level of fault tolerance for cruising boaters.

Available XT-Series mounting styles have been expanded to include the “Vortec” 9Si design found on many GM gasoline engines. XT-Series Alternators feature 96 slots – compared to 36 slots in a traditional S-wound stator – allowing the stator to develop superior electromagnetic energy and efficiency compared to traditional stator designs.

The XT-170 and XT-250 are designed to deliver superior performance at idle speeds – up to 128A and 186A, respectively for 12V applications. XT-Series Alternators may require a Tachometer Signal Stabilizer (Part No. 15-TSS) if your current tach is not adjustable. XT-Series Alternators should only be used in Dual Vee or Multi-Groove Serpentine belt configurations. Balmar’s range of AltMount® Serpentine Pulley Conversion Kits support XT-Series Alternators.

Features:

• The XT-Series Braided Stator Design has been expanded to include a 12V, 250A unit

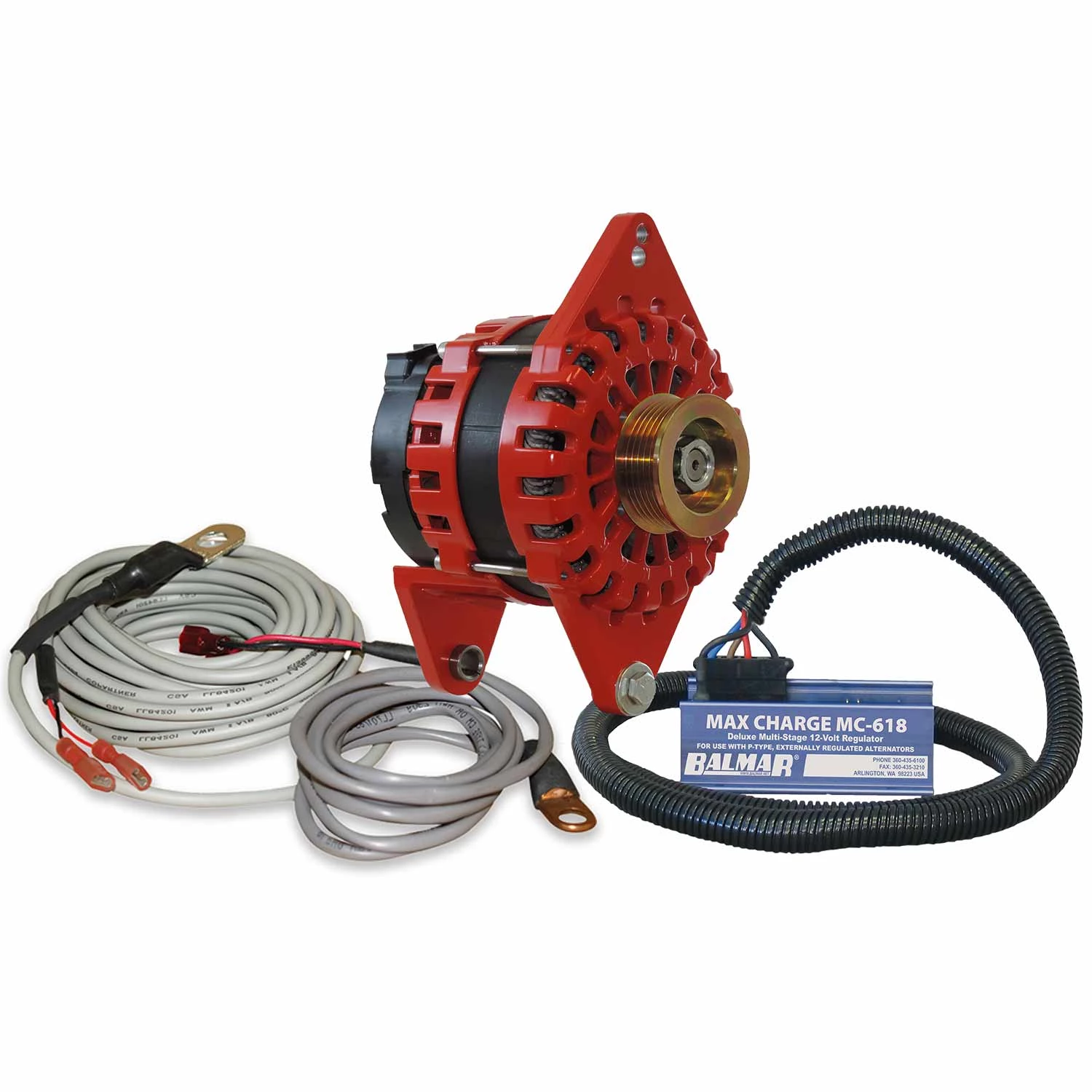

• Charging Kit Includes Alternator, MC-618 Regulator and Temp Sensing Cables
• 170A or 250A in a Small Case Package
• Up to 180A at Idle Speeds
• Patented Smart Ready® Technology
• Dual Fan Cooling, High Airflow Frame
• Ideal for Lithium Battery Banks
• USCG Title 33, ISO 8846 and SAE J1171 Certified
