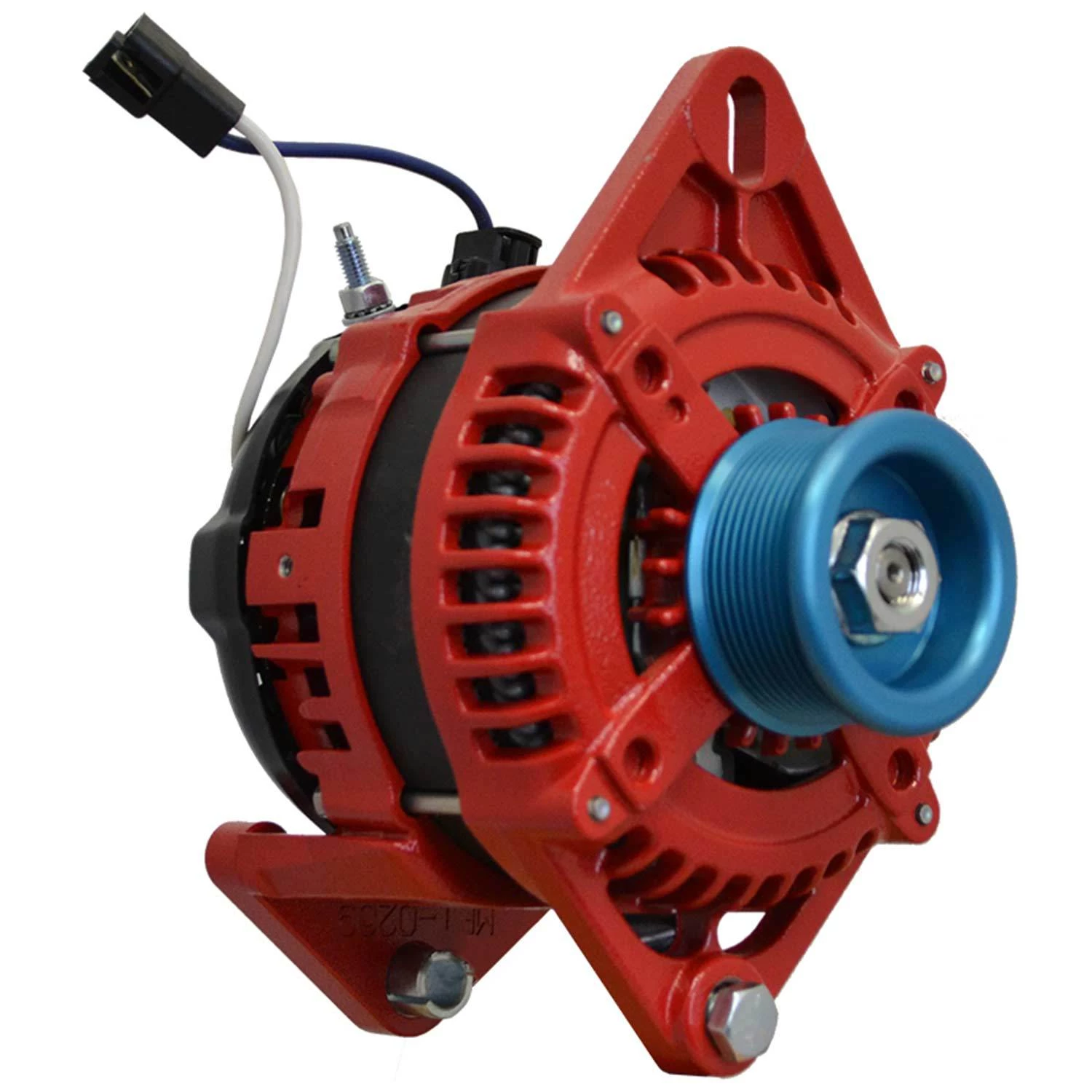

BALMAR High Output Alternators XT-Series, 170 Amp, 12 Volt, Dual Foot, J10 Pulley Alternator

Original price was: $423.00.Current price is: $95.99.

Buy Quality, Live Better

Safe and Secure Payments, Always

Get the quality you deserve, for less.

Protecting Your Payment Information

The BALMAR XT-Series Alternators provide exceptional power at low RPM and ruggedized construction for marine use.

The Dual Foot 3.15″ mount is appropriate for Yanmar engines. The XT-Series replaces the AT-Series with better power and temperature performace at a lower price point.

J10 Multigroove pulley is appropriate for use with an AltMount® Pulley Conversion Kit.

XT-Series delivers over 100A at idle speeds
Works best with Balmar Max Charge Regulator
Patented Smart Ready® Internal Regulator provides “come-home” capability
Powder Coat Finish for salt water environment protection
Upgraded bearings, brushes and diodes for longer life
Pulley-specific part numbers for easy installation

Dimensions	5.4", x, 7.5", x, 7.1"
ISO Approved	J1171, ISO28846, USCG, Title, 33
Mount Type	Dual, Foot, 3.15"
Outputs	1, Output
Pulley Groove Type	J10, Multigroove
Pulley Outside Diameter	2.4, Inches
Rated Output Power - 2000 RPM Hot	118, Amps
Rated Output Power - 6000 RPM Hot	170, Amps
Type	Alternator
Voltage	12, Volts, DC
Warranty	Two, Years
