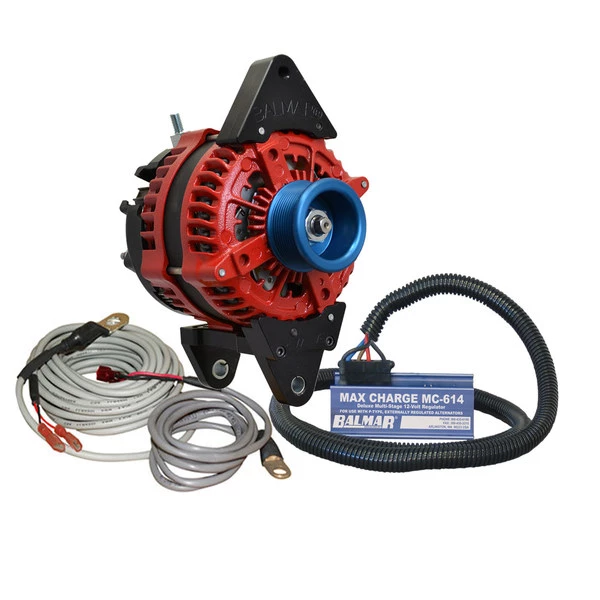

BALMAR High Output Alternators AT-Series 200 Amp, Dual Foot, Alternator Kit

AT-Series 200 Amp Alternator Kit

Designed for Recreational Applications

• 200A in a Small Case Package
• Dual Foot 3.15” Mount (Hitachi Style)
• J10 Serpentine Pulley
• Up to 147A at Idle Speeds
• Smart Ready® Technology
• 25% More Efficient
• Dual Fan Cooling
• High Airflow Frame
• Maximum RPM: 10,000
• Ideal for Large Battery Banks

AT (“Advanced Technology”) Series Alternators from Balmar bring together the latest innovations in alternator design to deliver incredible charging power in a compact, Marine-friendly package.

AT-Series Alternators feature a unique hairpin-wound stator design which uses densely wound square copper wire to generate exceptional output in the smallest possible area. Hairpin-wound stators feature 96 slots – compared to 36 slots in a traditional S-wound stator – allowing the hairpin-wound stator to develop superior electromagnetic energy and efficiency superior to other traditional stator designs.

AT-Series Alternators also feature a dozen 50A capacity, externally mounted avalanche diodes, dual internal fans, and massive heat-sinking designed to ensure essential cooling under high load demands. Scaled to fit in most original position installations, AT-Series Alternators are available in all four common mounting styles.

Max Charge MC-614 Voltage Regulator

• 7 Selectable Programs for Marine Batteries
• 15 Amp Maximum Field Current
• Advanced Programming Modes
• Alternator & Battery Temperature Sensing & Control
• Exclusive Belt Load Manager Function
• Bright LED Display and Easy Programming Mode

Can be Used in Twin-Engine Applications with Centerfielder Ii Temperature Sensors

• Temperature Sensors can be used for 12 Volt and 24 Volt Systems
• MC-TS-A – Alternator Cable, 54” Length
• MC-TS-B – Battery Cable, 240” Length
