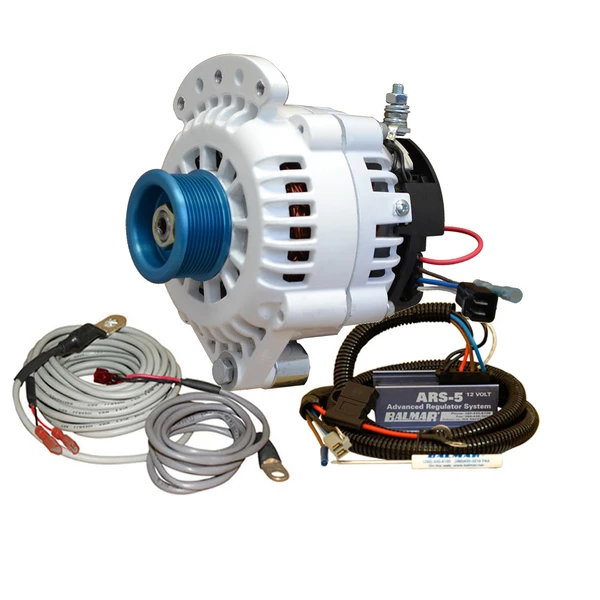

BALMAR High Output Alternators 621-Series, 150 Amp, Single Foot Alternator

621-Series 150 Amp Alternator Kit

Designed for Recreational Applications

150 Amp in a Small Case Package

Single Foot 1″” / 2” Mount

J10 Serpentine Pulley

Up to 70A at Idle Speeds

Patented Smart Ready® Technology

Dual Fan Cooling

High Airflow Frame

Maximum RPM: 12,000

USCG Title 33, ISO, SAE and CE Compliant

Balmar 621-Series Alternators deliver high-output performance in a compact case. While all Balmar’s high-output alternators are designed and recommended for use with their multi-stage voltage regulators, the 621-Series Alternator utilizes Balmar’s Smart Ready® Technology. Smart Ready® internal regulation enables the alternator to be used as a stand-alone, charge controller that is ideal as a built-in backup regulator for the cruiser, or as a full-time regulator for systems where Smart Multi-Stage Regulation is not required.  If battery loads are relatively small and your engine is running frequently, the alternator’s internal regulator may be sufficient to support your electrical needs without external regulation. If your vessel utilizes larger deep-cycle battery banks or the engine’s duty cycle is less frequent (as is the case in most sailing applications).

ARS-5 Voltage Regulator

5 Selectable Programs for Marine Batteries

9 Amp Maximum Field Current

Appropriate for 6-Series Alternators (150A and below)

Single Engine, Single Alternator Applications Only

Temperature Sensor Cables

Temp Sensors can be used for 12 Volt and 24 Volt Systems

MC-TS-A – Alternator Cable, 54” Length

MC-TS-B – Battery Cable, 240” Length
