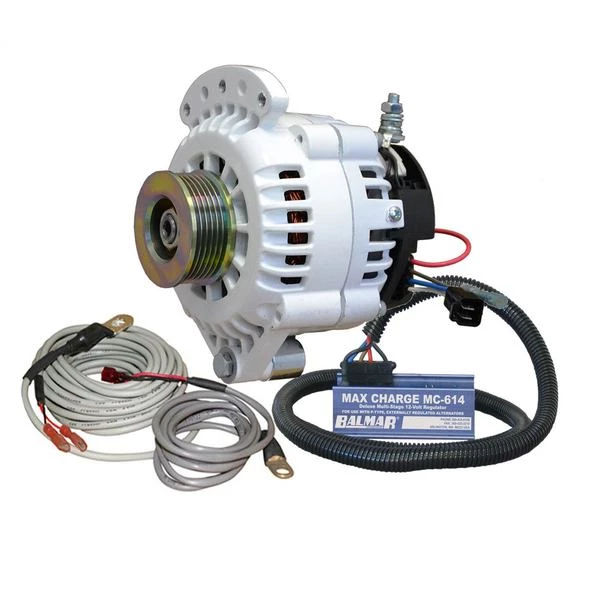

BALMAR High Output Alternators 621-Series, 120 Amp, Single Foot, Alternator Kit

621-Series 120 Amp Alternator Kit

Designed for Recreational Applications

• 120 Amp in a Small Case Package
• Single Foot 1″ / 2” Mount
• K6 Serpentine Pulley
• Up to 60A at Idle Speeds
• Patented Smart Ready® Technology
• Dual Fan Cooling
• High Airflow Frame
• Maximum RPM: 12,000
• USCG Title 33, ISO, SAE and CE Compliant

Balmar 621-Series Alternators deliver high-output performance in a compact case. While all Balmar’s high-output alternators are designed and recommended for use with their multi-stage voltage regulators, the 621-Series Alternator utilizes Balmar’s Smart Ready® Technology. Smart Ready® internal regulation enables the alternator to be used as a stand-alone, charge controller that is ideal as a built-in backup regulator for the cruiser, or as a full-time regulator for systems where Smart Multi-Stage Regulation is not required.  If battery loads are relatively small and your engine is running frequently, the alternator’s internal regulator may be sufficient to support your electrical needs without external regulation. If your vessel utilizes larger deep-cycle battery banks or the engine’s duty cycle is less frequent (as is the case in most sailing applications).

Max Charge MC-614 Voltage Regulator

7 Selectable Programs for Marine Batteries

15 Amp Maximum Field Current

Advanced Programming Modes

Alternator & Battery Temperature Sensing & Control

Exclusive Belt Load Manager Function

Bright LED Display and Easy Programming Mode

Can be Used in Twin-Engine Applications with Centerfielder Ii Temperature Sensor Cables

Temp Sensors can be used for 12 Volt and 24 Volt Systems

MC-TS-A – Alternator Cable, 54” Length

MC-TS-B – Battery Cable, 240” Length
