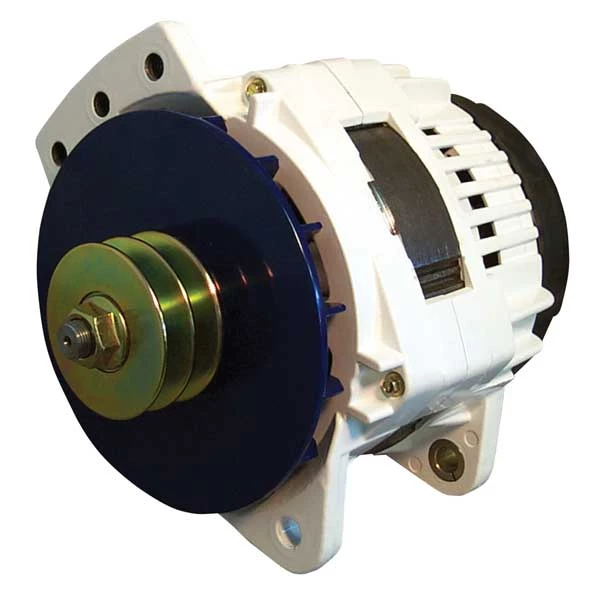

BALMAR High Output Alternators 220 Amp/24 Volt Brushless 98 Series Large Frame Alternator

Original price was: $427.00.Current price is: $98.99.

Buy Quality, Live Better

Safe and Secure Payments, Always

Get the quality you deserve, for less.

Protecting Your Payment Information

Large frame Balmar alternators deliver the power to handle larger battery banks and greater demands typical of offshore power and sailing yachts. Used in conjunction with Balmar Multi-Stage Regulators, these extra-high output alternators are designed to supply the sustained charging output required to meet big house and inverter loads while supporting extraordinary battery demands. All large frame alternators include an isolated ground.

Premium, extra-large case 98-Series alternators provide maximum power (up to 5 kw) to meet the challenging demands of commercial, military and luxury pleasure yachts. Rugged brushless design, built with oversized bearings and a 7/8″ shaft. Case diameter is 6 7/8″.

Case Construction: Powdercoated aluminum
Number of Outputs: One
Approvals: Ignition-safe design for diesel engines and meet USCG Title 33 safety standards. 97 and 98 Series are also safe for marine gas engines and meet SAE and international ISO 8846 and J1171 safety standards
Warranty: One year

98-Series Alternator Data Sheet

Balmar Alternator Application Guide

Dimensions	8, 1/4", Diameter, x, 9, 5/8", Height, x, 11", Length
Features	Ignition, Safe, Design
ISO Approved	Ignition-Safe, Design, for, Marine, Gas, or, Diesel, Engines, Meets, USCG, Title, 33, ISO, 8838, and, SAE, J1181, Safety, Standards
Mount Type	Dual, Foot, 4", Inner, Diameter, Saddle
Outputs	1, Output
Pulley Groove Type	Dual, Groove
Rated Output Power - 2000 RPM Hot	91, Amps
Rated Output Power - 6000 RPM Hot	184, Amps
Type	Alternators
Voltage	12, Volts, DC
Warranty	One, Year
